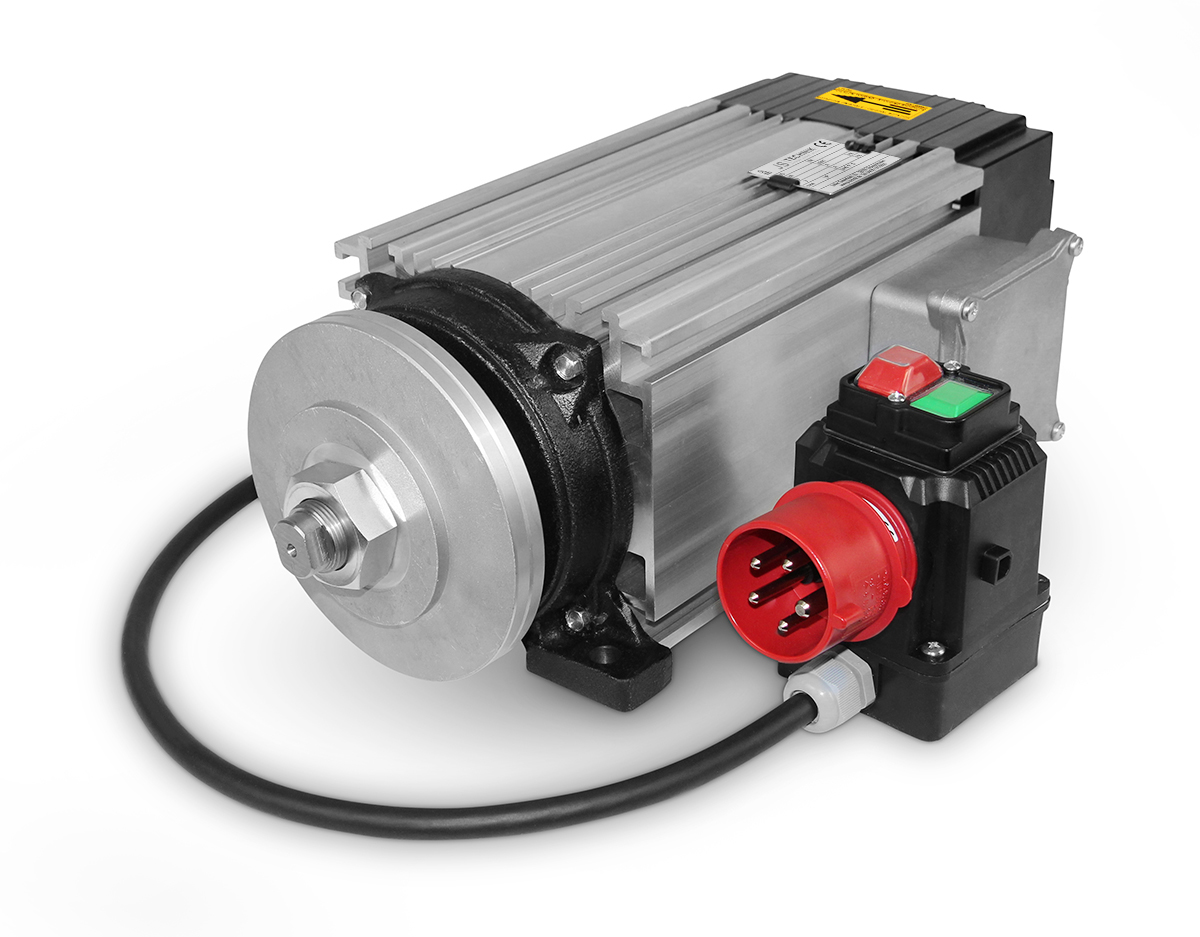

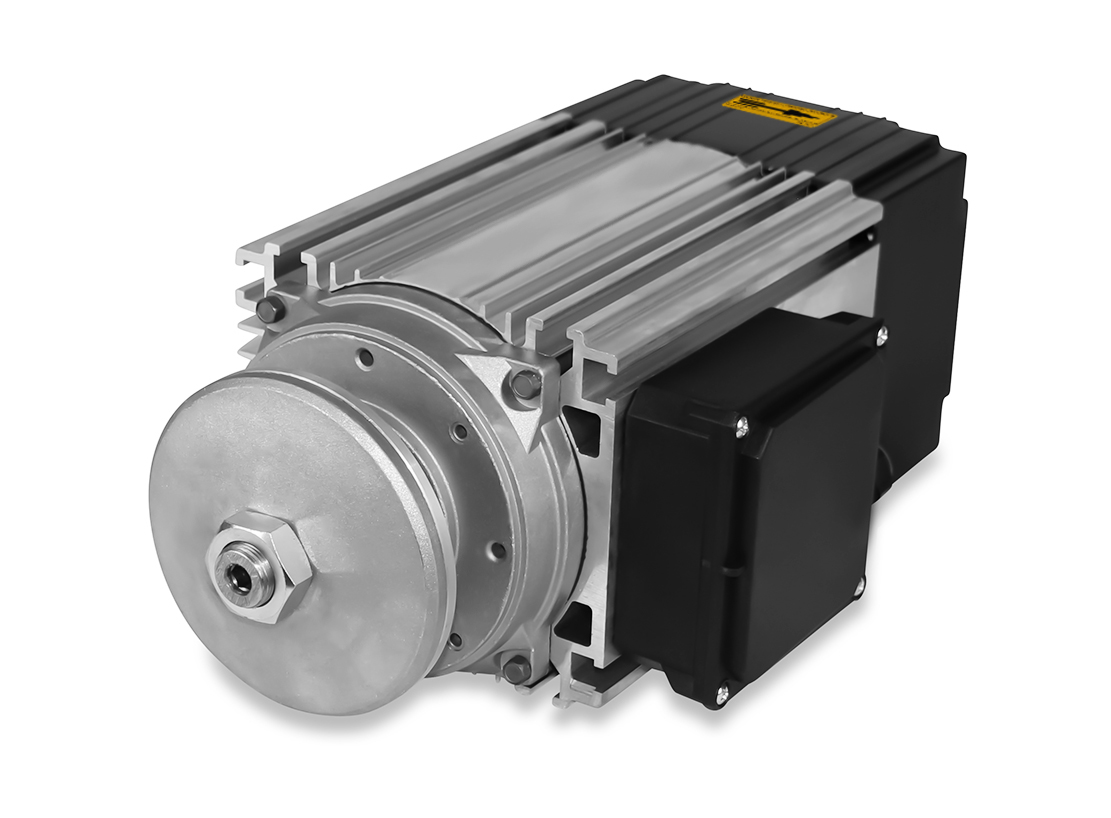

Flat motor version

The drives are available in 2- 4- 6 pole versions, i.e. in 3000 rpm, 1500 rpm and 1000 revolutions per minute. The performance range goes from 1.1kW, 1.5 kW, 2.2kW, 3.0kW, 4kW, 5.5kW, 7.5kW, 11kW, 15kW to 18kW. A single-phase version is also available from 1.1kW, 1.8kW, 2.2kW to 2.6kW. You can also get any size with an electromechanical brake.

Technical specifications

The flat motors are manufactured in accordance with the international standard IEC 60034-1. They comply with the following European legislation:
- 2006/95 / EG ("Low Voltage Directive")
- 2004/108 / EG ("electromagnetic compatibility")
- 2002/95 / EG ("RoHS").

Degree of protection

IP55 from MR58 to MR93; IP65 of the MR107 series.

Construction material

Structural housing made of extruded aluminium, die-cast aluminium, aluminium rotor, C45 steel shaft, self-lubricating double shield, radial ball bearing dimensioned for high loads, nylon fan,
heat-resistant fan covers. Aluminium. The flange is equipped with a clamping nut.
